RFI (radio frequency interference) respectively EMI (electromagnetic interference) behavior is very important in nowadays electronic devices.
We show how the characteristic of a standard RFI or EMI filter can be measured using the Bode 100.
1. RFI Power Inlet Filter Measurement with Bode 100

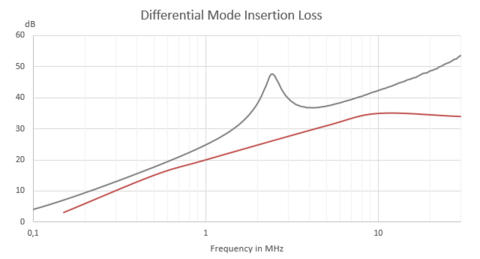

This application note shows how the common mode and differential mode insertion loss of a standard power inlet filter can be measured using the Bode 100.
To learn how to measure common mode and differential mode insertion loss with the Bode 100, please download the full application note as a .pdf file under the following link:
2. EMC Filter Insertion Loss Simulation
This application note describes how to derive a wideband model of an EMC filter using the Bode 100 vector network analyzer.
If you like to know how to derive a simulation model for EMC filters, you can follow the step by step guide in the following document
AppNote: RFI Power Inlet Filter Measurement
(1 MB)
Download
AppNote: EMC Filter Insertion Loss Simulation
(2 MB)
Download
