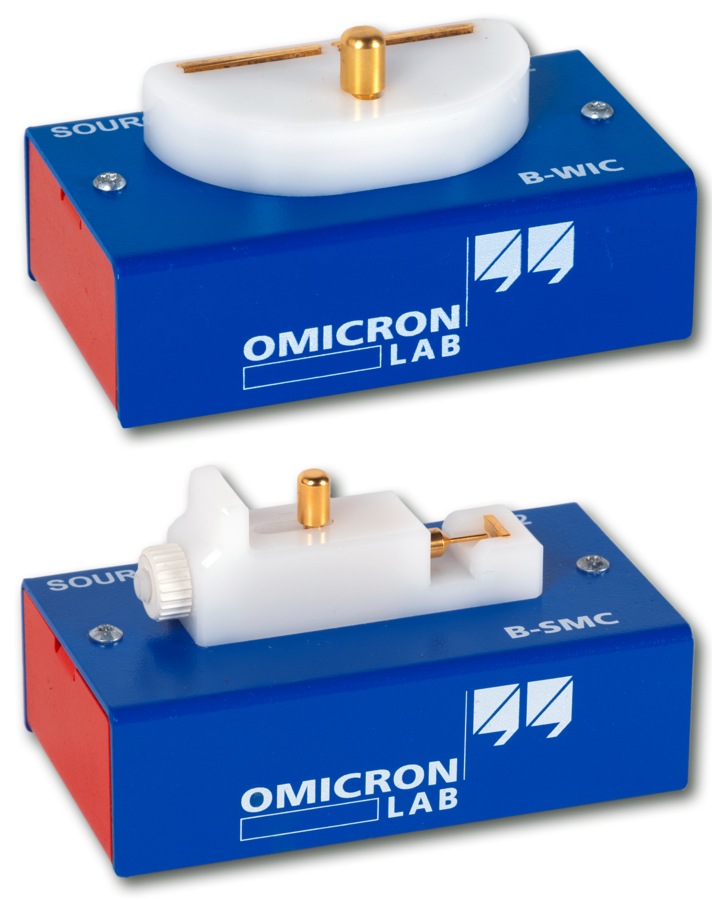

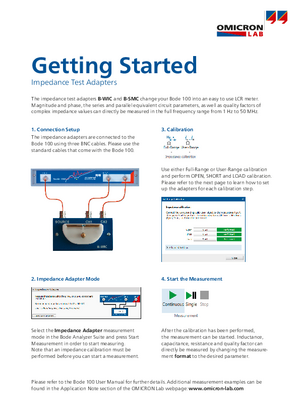

Impedance Test Fixtures B-WIC & B-SMC
The impedance adapters B-WIC and B-SMC turn your Bode 100 into an easy-to-use LCR meter or impedance analyzer and are the perfect choice for impedance measurements of passive electronic components.
The B-WIC was especially designed for getting a better grip on thru-hole type components.
The B-SMC allows quick and secure contacting of even smallest surface-mount parts.
Key Features:
- Optimized for RLC-Q measurements of all common passive electronic components
- Fast DUT exchange
- Gold-plated electrodes for low contact resistance and reproducible results
- CE compliant, RoHS compliant
Technical Data:
- Signal input and output connectors: BNC
- Useable frequency range: 1 Hz - 50 MHz
- Recommended impedance range: 20 mΩ to 600 kΩ
Check out the video to the right, to see how the B-WIC is used to measure capacitance, inductance and ESR of different capacitors over frequency.

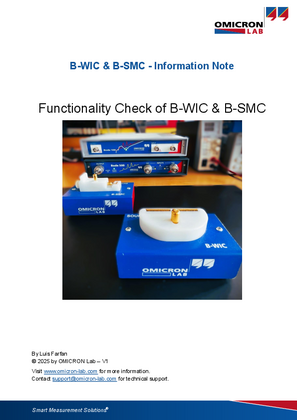

Functional Check
The impedance test fixtures B-SMC and B-WIC are robust devices with rare failure occurence. If you suspect your device is damaged internally and want to check if your device is still functional, please perform the tests shown in the document below.
