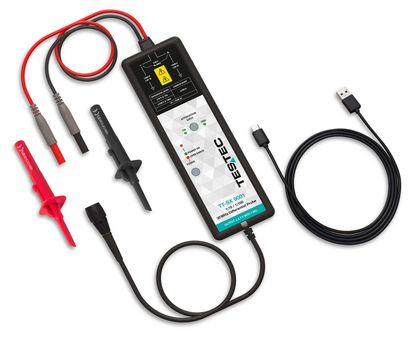

TT-SX 9001 Active Differential Probe

An active differential probe can be used to avoid grounding issues or perform measurements on floating voltages. The advantage of the TT-SX 9001 is that it can handle high voltages up to 70 Vpeak in 10x setting and 700 Vpeak in 100x setting.

Key Features:

  • Enables measurements in circuits with high voltages up to 700 V
  • Avoids grounding problems
  • CAT III rated inputs
  • Powered by USB-C or AA batteries

Some Technical Data:

  • Bandwidth: DC to 30 MHz (-3 dB)
  • Attenuation ratio: 1/10 or 1/100
  • Gain Accuracy: ±2 %
  • Differential input voltage range: 70 V @ 1/10; 700 V @ 1/100
  • Common mode input voltage range: 700 V @ 1/10 & 1/100

More technical data can be found in the datasheet & user manual of the probe:

Datasheet & User Manual

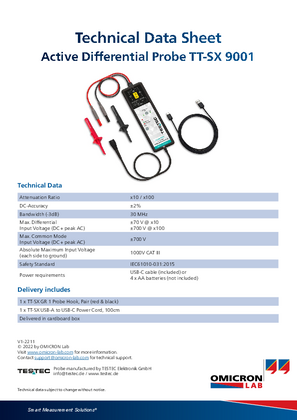

TT-SX 9001 Datasheet

(140 KB)

Download

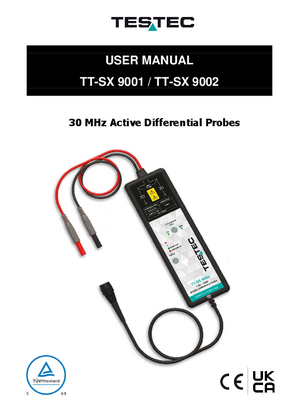

TT-SX 9001 User Manual
