Dielectric Sample Holder DSH 100

OMICRON Lab’s DSH 100 Dielectric Sample Holder is designed for the analysis of solid dielectric materials like nano composites, polymers, epoxy, insulation paper, glasses, thin films and other materials.

Together with the Dielectric Material Analyzer SPECTANO 100, the DSH 100 is suitable to determine all important dielectric parameters such as the dielectric constant (εr’, εr’’), losses (tanδ), capacitance, specific conductivity or impedance and meets the requirements of international standards for dielectric material analysis (ASTM D150, IEC 62631-2-1 and 62631-3-1:2017).

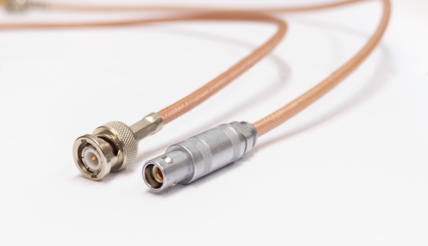

The DSH 100 can be used in conjunction with other impedance analyzers or LCR meters such as the Bode 100.

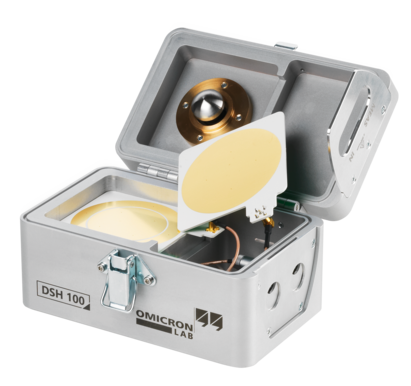

The sample holder features a parallel plate electrode configuration with guard ring. The exchangeable electrode design allows to analyze curing processes of materials such as epoxy.

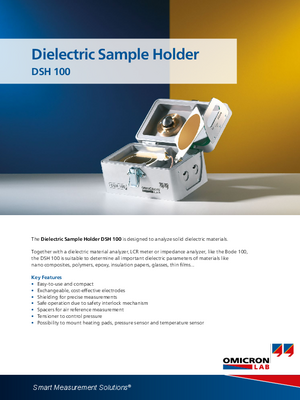

Product brochure - DSH 100

(150 KB)

Download

Key features:

  • Safe operation due to safety interlock mechanism
  • Easy-to-use and compact design
  • Exchangeable, cost-effective electrodes
  • Full metal shielding for precise measurements
  • Includes spacers for air-reference measurements
  • Tensioner to precisely control pressure force
  • Possibility to mount heating pads, pressure sensor and temperature sensor

Technical data:

  • Maximum Operation Voltage: ≤ 200 Vpeak
  • Usable frequency range: 5 µHz to 5 MHz
  • Recommended sample thickness: 0.1 mm to 20 mm
  • Sample size: 50 mm x 50 mm to 70 mm x 70 mm
  • Operating temperature: - 55°C to + 125°C
