B-RFID test fixtures

These test fixtures enable you to perform contactless resonance-frequency and Q-factor measurements on ISO 14443-1:2008 smart cards. The slide-in card holding mechanics allows you to perform close-distance and 10mm distance measurements.

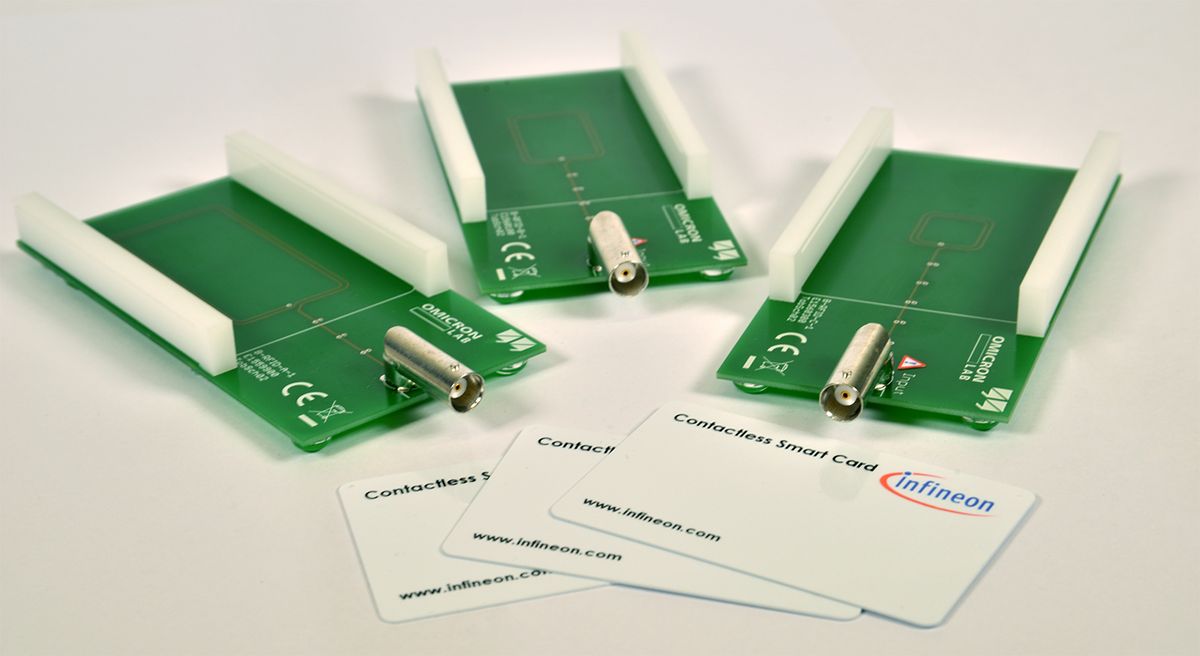

Three different fixture versions are available which are optimized for Class 1, Class 3 or Class 6 cards according to ISO 14443-1:2008.

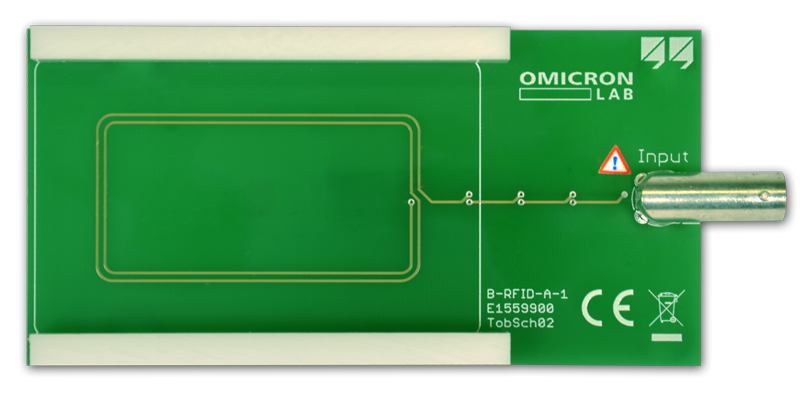

Designed to measure RFID/NFC Class 1 smartcards.
Delivery includes a Class 1 sample-card.

B-RFID-B

for Class 3 cards

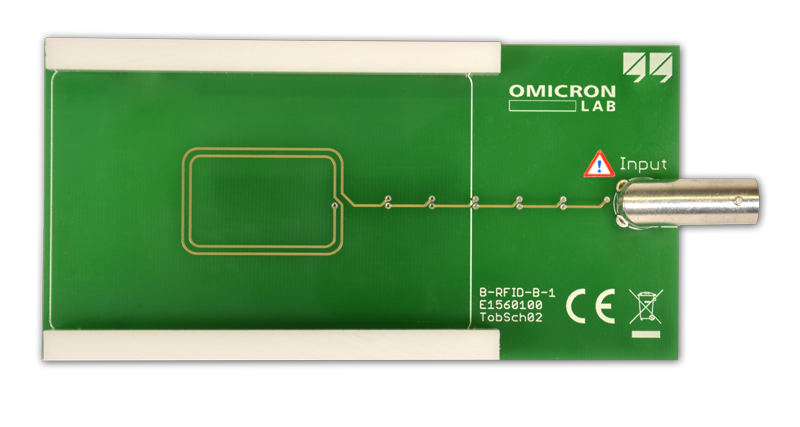

Designed to measure RFID/NFC Class 3 smartcards.
Delivery includes a Class 1 sample-card

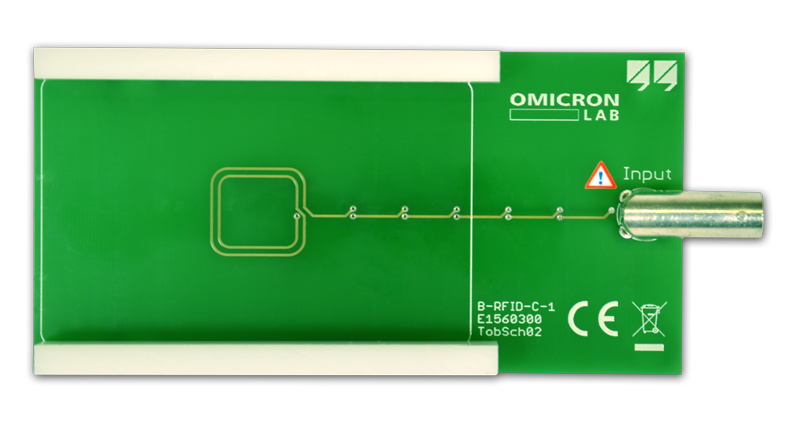

Designed to measure RFID/NFC Class 6 smartcards.
Delivery includes a Class 1 sample-card.

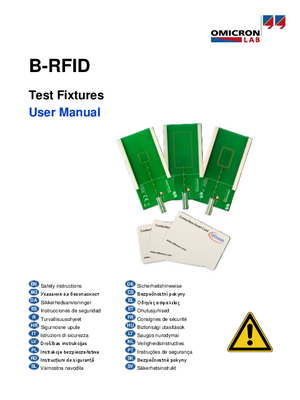

B-RFID User Manual

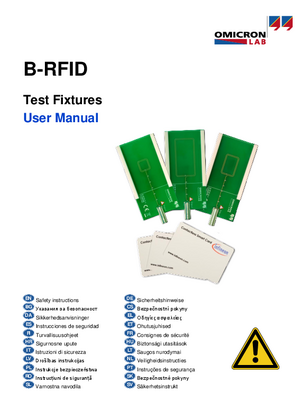

B-RFID User Manual V1.0

(1 MB)

Download

Learn how to use the B-RFID test fixtures in conjunction with Bode 100 and Bode Analyzer Suite by reading the application note RFID resonance frequency measurements or watching the video to the right!

Starting with Bode Analyzer Suite 3.11, an automatic Resonance frequency and Q-factor calculation feature is now available! Click here to get the latest version of Bode Analyzer Suite.

If you want to learn more about the principles of the contactless resonance-frequency and q-factor measurements, check out this bachelor thesis.
