Easily fit a frequency response of a system’s transfer function based on its input and output voltage ratio measurement in Bode Analyzer Suite using the innovative and user-friendly Gain Fit feature.

What is a Gain Fit?

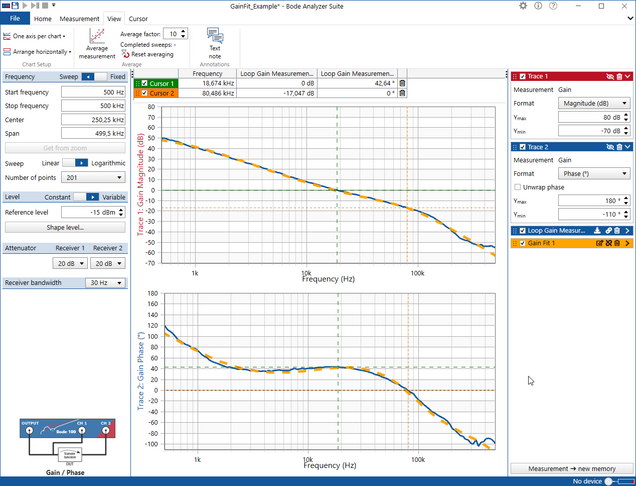

A Gain measurement in the Bode Analyzer Suite captures the frequency response of a system’s transfer function based on its input and output voltage ratio. The Gain Fit represents a mathematical equation that approximates this measured response.

Your Benefits:

• Easily create a fit using a user-friendly, structured interface
• Perform measurement-based analysis
• Measure and model in one software
• Visulize Poles and Zeros in a separate chart
• Fit transfer function with up to 20 Poles


Fit and Export Results

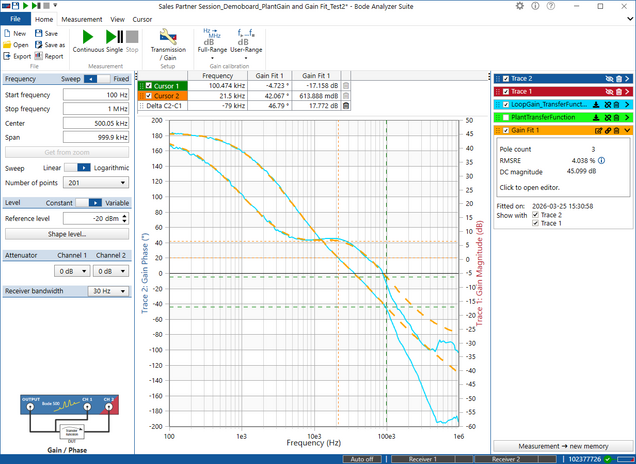

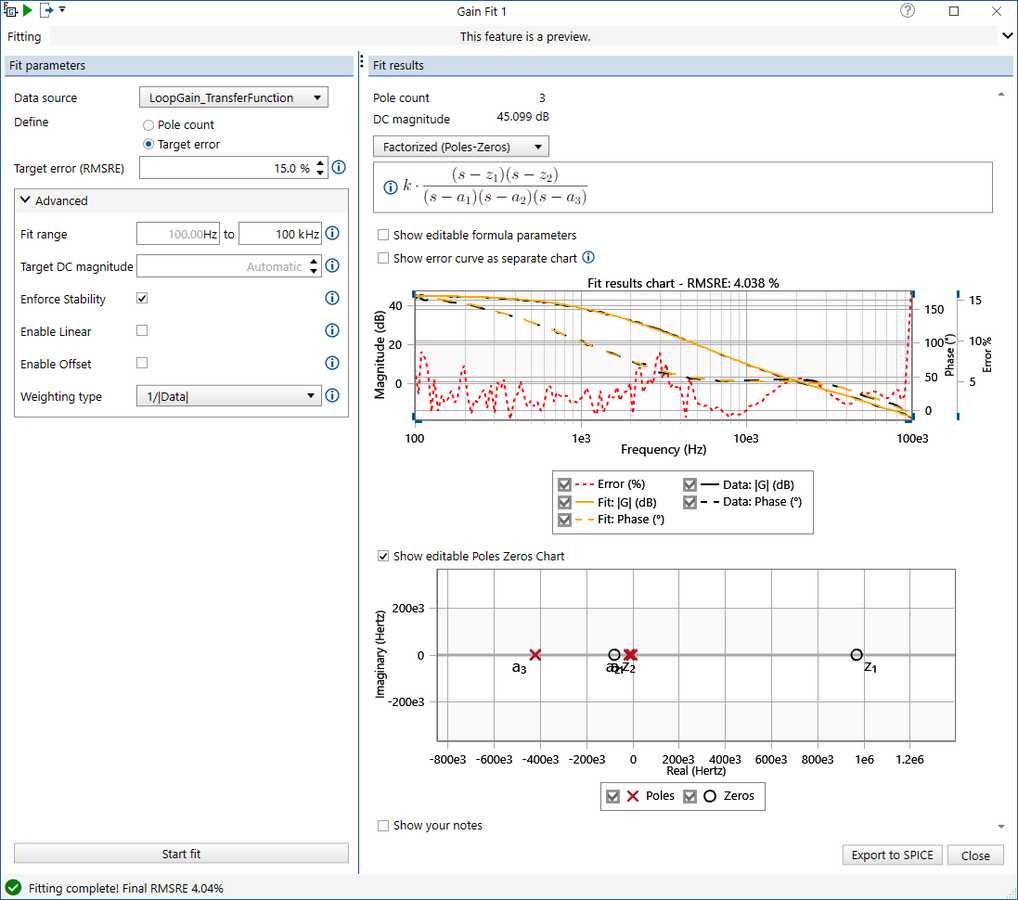

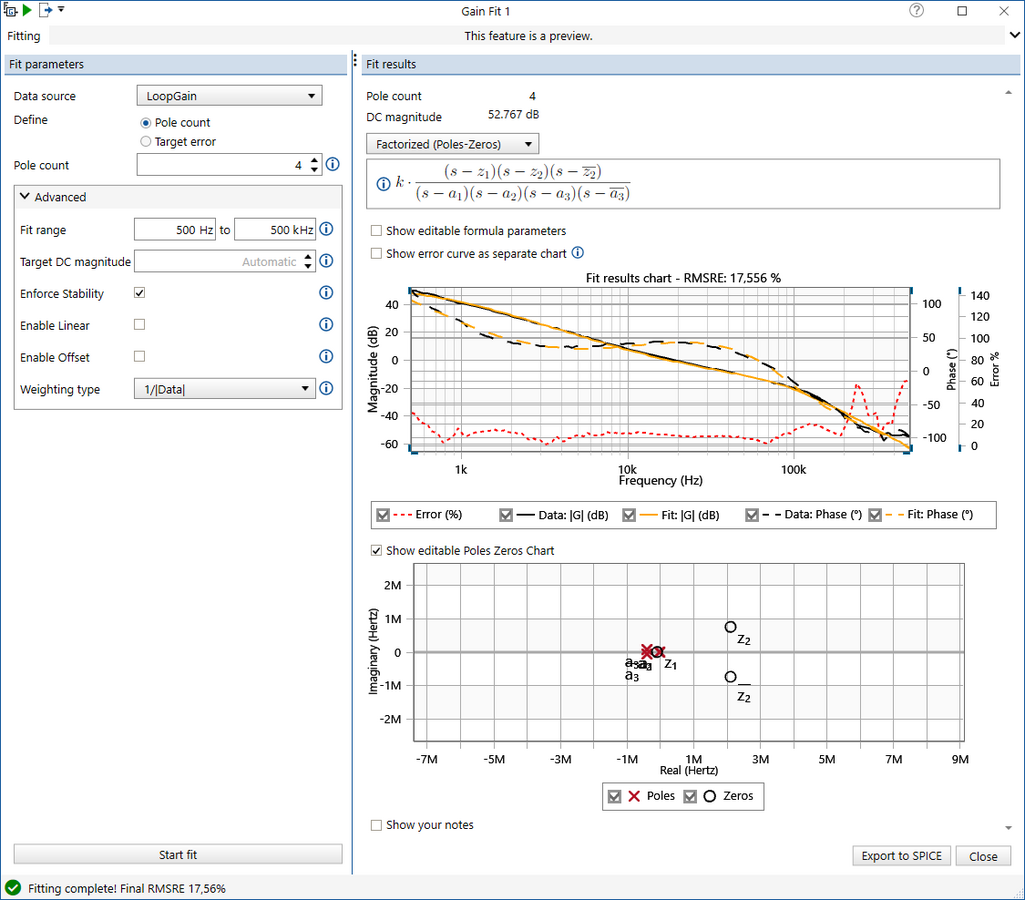

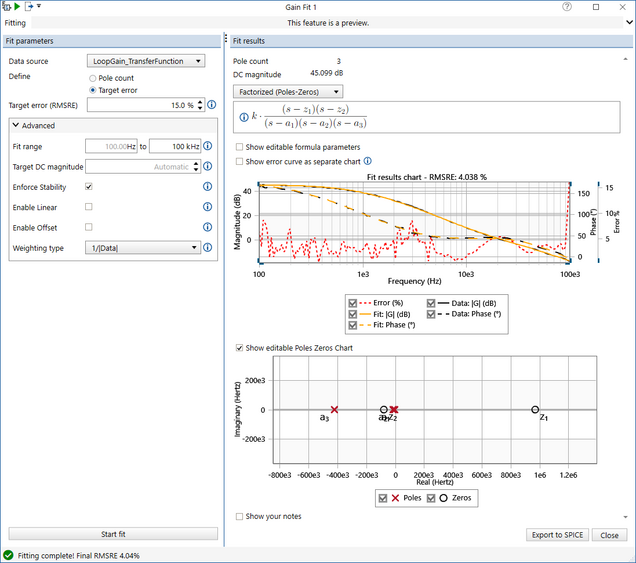

After configuring the fit parameters and having fitted a model, you can visualize the results as a Bode diagram and, as a pole-zero chart. The resulting model can be exported as a formula with parameters, as a parameter table, or in the form of a SPICE model.
