Technical Data - Bode 500

CharacteristicRating
Frequency range10 mHz to 450 MHz
WaveformSinusoidal
Signal level range-50 dBm...16 dBm*
4 mVpp to 8 Vpp (no load)
2 mVpp to 4 Vpp (50 Ω load)
Source level accuracy±0.2 dB (DC to 100 MHz)
±0.6 dB (100 MHz to 450 MHz)
Source signal DC offsetUp to 35 kHz: < 5 mV or < 0.2% of Vpp
Above 35 kHz: < 2 mV
Frequency accuracy after adjustment± 0.5 ppm ± 0.5 step size
Frequency step size / resolution3.52 μHz
Source impedance50 Ω
Return loss (1 Hz to 50 MHz)>30 dB, >35 dB typical (DC to 100 MHz)
>26 dB, >30 dB typical (100 MHz to 200 MHz)
>23 dB, >28 dB typical (200 MHz to 450 MHz)
Spurious signals & harmonics<-25 dBc at full output power (typical)
Maximum reverse signal / power0.5 W = 5 VRMS (≤ 3.3 Vdc recommended)
OUTPUT, CH1, CH2 connector typeN

*...linear derating from 16 dBm to 13 dBm (100 MHz to 300 MHz), and to 7 dBm at 450 MHz.

CharacteristicRating
Frequency range10 mHz to 450 MHz
Input impedance (software switchable)High: 1 MΩ (AC-coupled)
Low: 50 Ω (DC-coupled)
1 MΩ input impedance1 MΩ ± 0.5 % (AC-coupled)
25 pF @ 1 MHz (typical)
50 Ω input impedance return loss> 28 dB, >35 dB typical (DC to 100 MHz)
> 23 dB, >28 dB typical (100 MHz to 450 MHz)
Receiver bandwidth (RBW) software selectable1 Hz, 3 Hz, 10 Hz, 30 Hz, 100 Hz, 300 Hz, 1 kHz,
3 kHz , 5 kHz, 10 kHz, 15 kHz
Input attenuators (software selectable)0 dB, 20 dB
Full-scale AC input signal1 VRMS          @ 0 dB input attenuator
10 VRMS       @ 20 dB input attenuator
Input channel sensitivity (typical)< 1 µVRMS @ 0 dB attenuator, 10 Hz RBW 3 kHz
to 100 MHz
Maximum DC voltage1 MΩ input impedance: 50 V
50 Ω input impedance: 7 V
Input channels dynamic range > 120 dB (@ 10 Hz RBW, 3 kHz to 100 MHz)
Noise floor (S21 measurement)
RBW = 10 Hz, PSOURCE = 16 dBm,
Attenuator
CH2: 0 dB		1 Hz to 10 kHz: -120 dB (typical)
3 kHz to 100 MHz: -130 dB (typical)
at 300 MHz: -115 dB (typical)
at 450 MHz: -105 dB (typical)
Connector typeN
CharacteristicMinimum Configuration
ProcessorIntel Core-i Dual-Core (or similar)
Memory (RAM)2 GB, 4 GB recommended
Graphics resolutionSuper VGA (1024x768)
higher resolution recommended
Graphics cardDirectX 11 with Direct2D support
USB interfaceUSB 2.0 or higher
Operating systemWindows 11
Bode Analyzer Suite SoftwareBode 500 requires Bode Analyzer Suite 3.50 or
newer.
Wide-range mains power adapter
Input voltage / frequency / current100…240 V / 47…63 Hz / < 0.5 A
Output voltage / current / power18 Vdc / 1.33 A / 24 W
Bode 500 power requirements
Maximum power requirement24 W
Coaxial Power socket+9 Vdc to +24 Vdc
Type: 2.5 mm / 5.5mm
Inner conductor is positive
Power over EthernetPoE+, class 4
USB-PD (Powered over USB) demand20 V / 1.25 A or
15 V / 1.75 A
CharacteristicConditionRating
TemperatureStorage–35…+60ºC/–31…+140ºF
 Operating+5…+40ºC/+41…+104ºF
 For specifications23ºC ± 5ºC/73ºF ± 18ºF
Relative humidityStorage20…90%, non-condensing
 Operating20…80%, non-condensing
Control (and supply) USB connectorUSB-C
Control (and supply) Ethernet connectorRJ45
USB-Host interface connectorUSB-A**
External reference input connectorBNC**
External trigger input/output connectorBNC**
Dimensions (w × h × d):26 x 5 x 27 cm
10.25 x 2 x 10.65 inch
Weight - Bode 500:2.2 kg / 4.9 lb

**...reserved for future use.

DC Power Input
Maximum DC supply voltage+26 V
Maximum DC supply reverse voltage-26 V
INPUT CH 1, INPUT CH 2 connectors (1 MΩ input impedance selected)
Maximum DC input signal- 50 V...+ 50 V
Maximum peak value for AC + DC signal- 60 V...+ 60 V
Maximum AC input signal10 mHz...1 MHz: 40 VRMS
2 MHz...5 MHz: 15 VRMS
5 MHz...10 MHz: 10 VRMS
10 MHz ... 450 MHz: 7 VRMS
INPUT CH 1, INPUT CH 2 connectors (50 Ω input impedance selected)
Maximum input power1 W
Maximum input voltage7 VRMS
OUTPUT connector
Maximum reverse power0.5 W
Maximum reverse voltage5 VRMS (≤ 3.3 Vdc recommended)

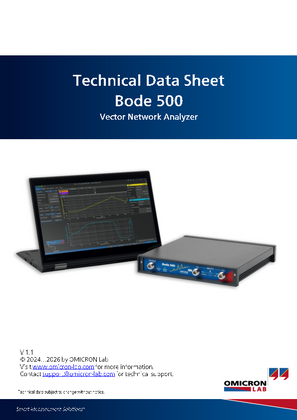

Technical data sheet - Bode 500
