Picotest PDN Cables

The new thin and flexible PDN Cables® from Picotest are optimized for PDN testing. With the triple-shield, the cables offer high noise-suppression and an optimum shielding effect. The shield resistance is reduced for improved impedance measurements. With the santoprene jacket, the cables can be used in measurements up to 125°C.

For more information on the Picotest PDN Cables®, please check out the Picotest website.

PURCHASE OPTIONS

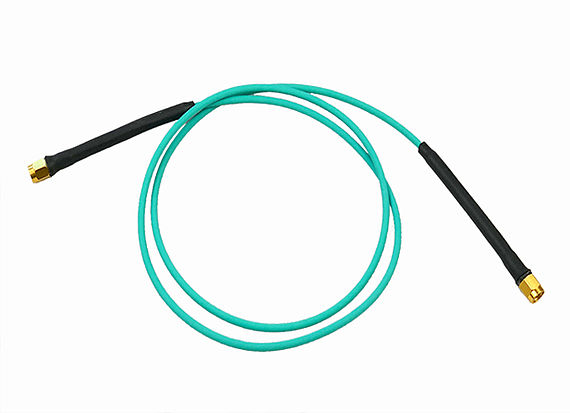

PDN_Cable

Key Features:

  • Very thin - Ultra-flexible cable optimized for PDN (power distribution network) and SI (signal integrity) testing
  • Reduced shield resistance for more accurate PDN impedance measurements
  • Brass soldered connectors for reduced shield resistance
  • Santoprene jacket for +125°C for temperature chamber measurements
  • Triple shielded for added noise suppression
  • Cable assemblies are 100% TDR (time domain reflectometry) tested for defects

Available Connector Types - each available in 0.25m, 0.5m or 1m length:

  • BNC - SMA
  • BNC - BNC
  • BNC - Mini SMP
  • N - BNC
  • N - N
  • SMA - SMA
  • SMA - N
  • SMA - Mini SMP
