Picotest Signal Injectors

The Picotest line of signal injectors is the most versatile and sophisticated set of test adapters ever developed. They are an essential part of getting the most out of your network and impedance analyzers whether you are measuring power supplies, regulators, other linear circuitry or components.

Our signal injectors outperform the competition with greater bandwidth, lower distortion and flat out better performance. Unique to the product line are two solid state injectors (voltage and current) and a line injection adapter ideal for measuring PSRR. The Picotest line of signal injectors can be used with any manufacturer’s test equipment.


If you are interested in the injectors the following application notes might be interesting for you:

For more detailed information or for quotation requests, feel free to contact us at info[at]omicron-lab.com or via our contact form

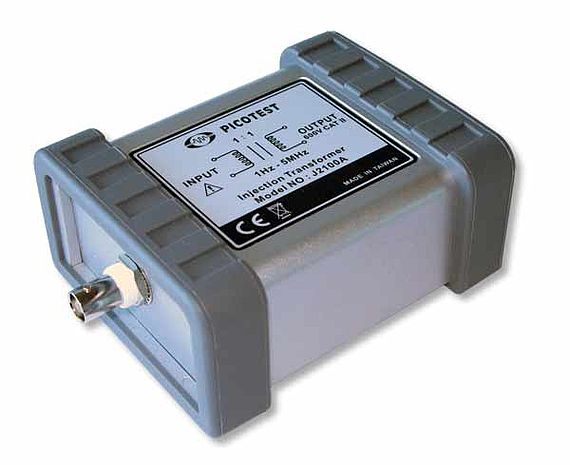

J2100A Injection Transformer
  • Frequency range: 1 Hz - 5 MHz
  • Tested according to 600 V CAT II

Feel free do download the specification sheet!

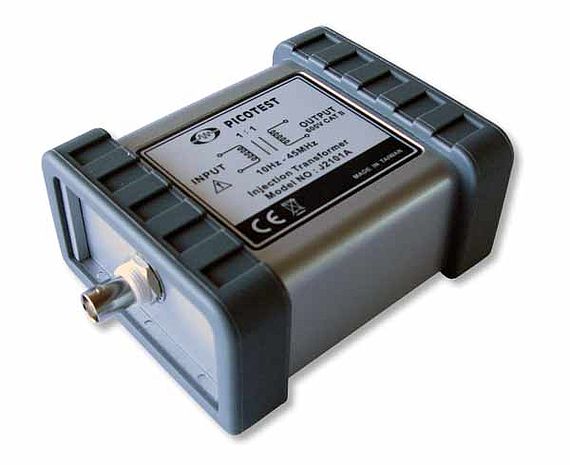

  • Frequency range 10 Hz - 45 MHz
  • Tested according to 600V CAT II

Feel free to download the specification sheet!

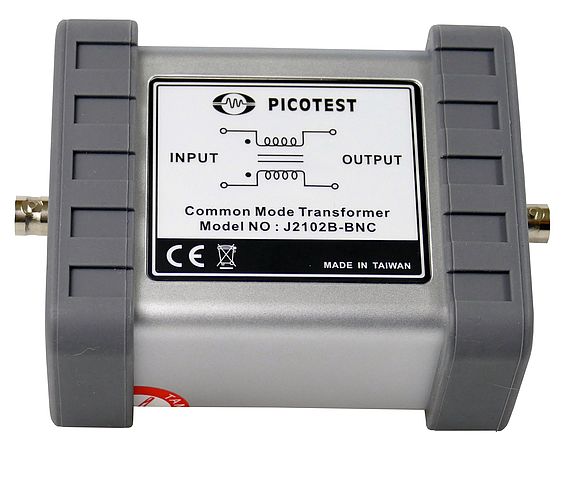

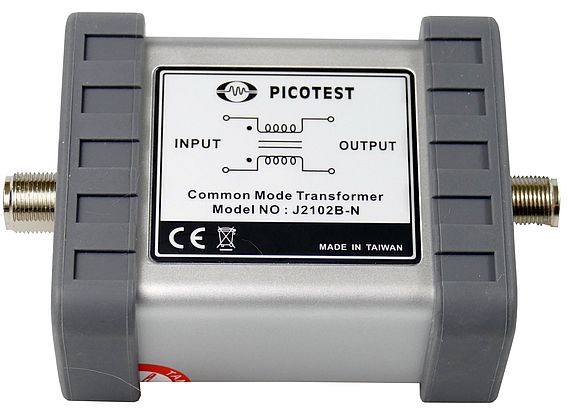

The J2102B commom mode transformer greatly attenuates the effects of low-frequency ground loops.

  • Two connector versions: BNC and N
  • Supports the 2 Port Shunt-Thru impedance measurements required for Power Distribution Networks (PDN's)
  • Ultra-low noise output - Ultra-high ripple rejection
  • Maintains 50 Ω transmission line integrity to at least 6 GHz

For more information on the J2102B, check out the Picotest website!

 Note: The Picotest J2102B-BNC replaces the Picotest J2102A common mode transformer.

  • DC-45 MHz supports controls and high performance amps
  • Low distortion for superior precision
  • 25 Ohm insertion resistance
  • 50 Ohm oscillator input
  • < 3 uA typical bias current
  • >2 MΩ typical Input Resistance
  • High PSRR Low Noise Regulator with Universal input
  • Ultra linear front end perfect for IMD measurement

Delivery includes a J2171A High PSRR Regulated Adapter.

Feel free to download the specification sheet!

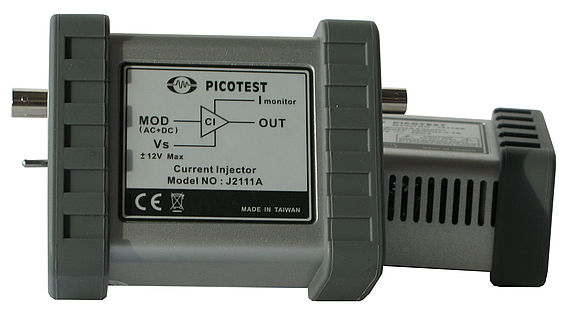

The J2111B is a high-speed small-signal current sink. It can modulate a load current to a voltage source that provides a voltage output >1.5V.
Measuring the output voltage and the current using the built-in current monitor, the output impedance of a voltage source can be measured.
The J2111B offers the following features:

  • High PSRR Low Noise Regulator with Universal input
  • 20 nSec typical rise and fall time
  • DC-40 MHz usable range (interconnection dependent)
  • Two Quadrant Bipolar operation works with positive or negative source
  • Built in offset for use with Network Analyzer
  • Precision current monitor with 50 Ohm output
  • Works with Arbitrary Waveform analyzers, Function generators and Network Analyzers
  • Can be used to measure battery impedance

Delivery includes a J2171A High PSRR Regulated Adapter.

Please check out the Picotest website for a complete specification sheet and further detailed information about the J2111B.

  • Fast transient load stepping up to 1 A
  • 20 ns typ. rise and fall time
  • DC - 40 MHz usable range (interconnection dependent)
  • Measures non-invasive phase margin, output impedance, reverse transfer, crosstalk, input filter stability
  • Works with positive voltage sources up to 10.5 V
  • Built-in offset for use with Bode 100
  • Precision current monitor with 50 Ω output
  • Works with any manufacturer’s AWG, function generator and network analyzer
  • Delivery includes a J2171A High PSRR Regulated Adapter

Feel free to download the specification sheet!

  • Eliminates DC ground loop down to 1Hz
  • Works up to 800MHz (-3dB)
  • Supports the 2 Port Shunt Thru impedance measurement required for Power Distribution Networks (PDNs)
  • Works with all types of test equipment to eliminate ground loops, such as Network Analyzers, Oscilloscopes and Spectrum Analyzers

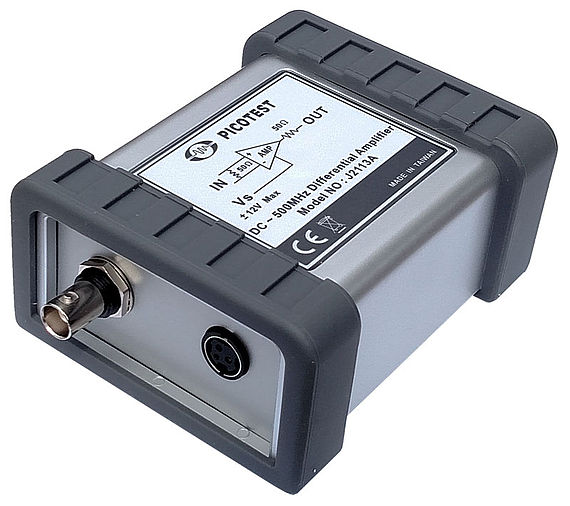

  • Popular for oscilloscopes - isolate probe grounds - J2113A is optimized for pulse response
  • Perfect for component measurements
  • Excellent CMMR performance

Delivery includes a J2171A High PSRR Regulated Adapter

For more information on the J2113A, check out the Picotest website!

  • 10 Hz-10 MHz usable bandwidth
  • Low loss design
  • 5 Amps maximum current
  • 50 VDC max input
  • Easily measure input filters and PSRR

Feel free to download the specification sheet!

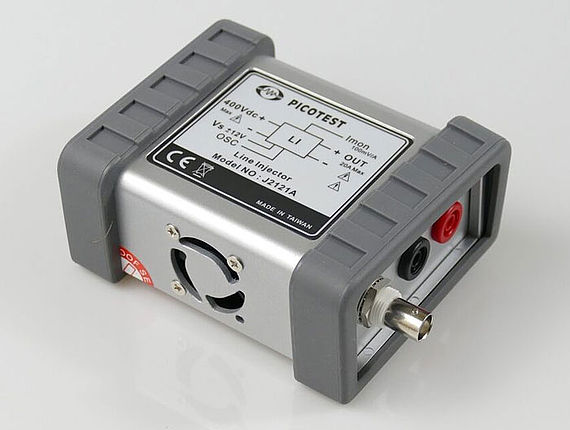

  • 400V/20A max – Supports High Power 270V Military and Satellite Bus Applications
  • 100Hz - 1MHz bandwidth
  • Regulated Input-Output Voltage Drop, 750mV
  • Isolated Current Sense Monitor Output
  • Fan cooled
  • Includes low-noise power supply

For more information on the J2121A, check out the Picotest website!

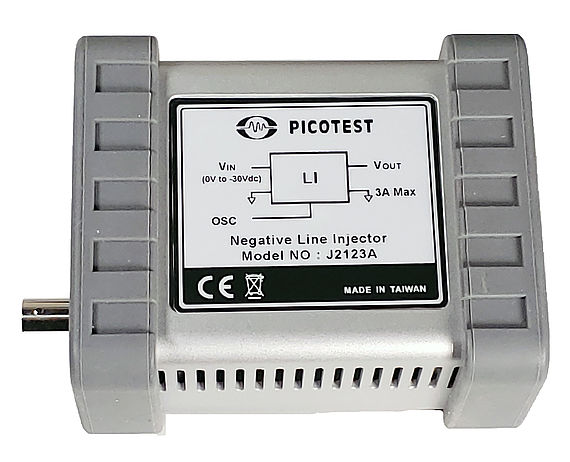

  • Negative voltage line injector
  • Modulates a DC power source voltage
  • Combines modulation signal with bus voltage
  • 10 Hz - 50 MHz usable bandwidth
  • Low impedance, low noise, and low voltage-compliance
  • 3 A max. current
  • -30 VDC max. input
  • Easily measure input filters and PSRR

Feel free to download the specification sheet!

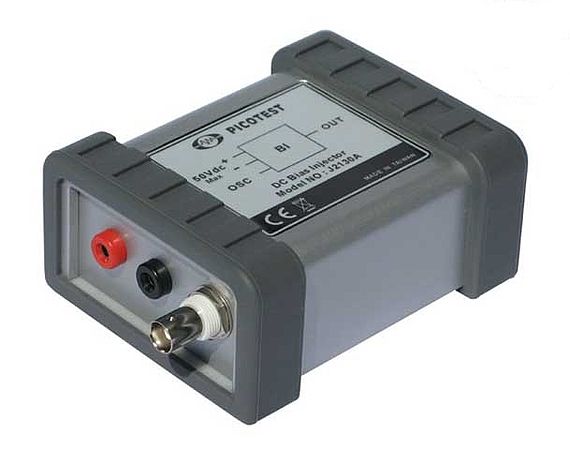

  • 10 Hz-10 MHz usable bandwidth Low loss design
  • Easily measure varactors, junction capacitance
  • Measure X5R capacitor voltage sensitivity
  • Bias low power transistor amplifiers and diodes for parameter extraction

For more information on the J2130A, check out the Picotest website!

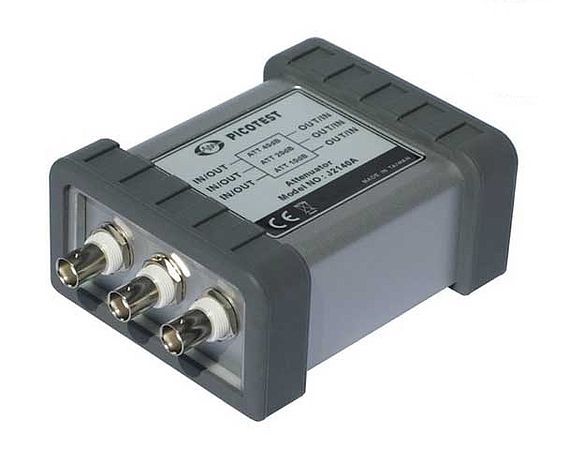

  • Integrated unit includes 40 dB, 20 dB and 10 dB
  • Cascade for greater attenuation
  • Improve noise floor or assure small signal measurement

Feel free to download the specification sheet!

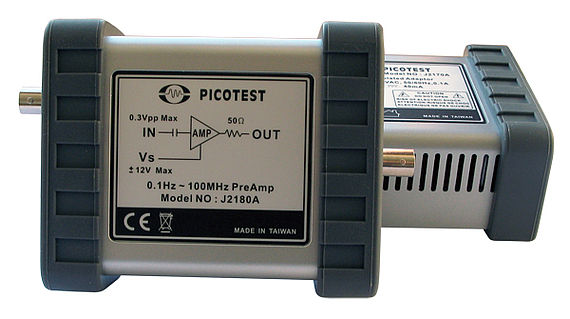

  • Adds 20 dB gain
  • Minimizes circuit loading
  • Frequency range: 0.1 Hz - 100 MHz
  • Delivered with J2171A High PSRR Regulated Adapter

Feel free to download the specification sheet!
